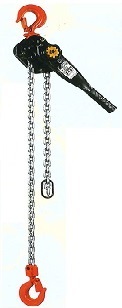

YIII Series Lever Hoists
  • YIII Series Lever Hoists

YIII Series Lever Hoists

Tổng quan

  • Elephant's high-tech load chains are approved by DIN 5684, one of the world's strictest standards. This is the special heat-treated load chain of Grade V (100kgf/mm2) whose tensile strength far surpasses JIS Grade V.
  • Safety factor 5 times.
    Load chain, hooks, braking parts have 5 times safety factor.
  • Stronger hook and safety latch.


YIII Series Lever Hoists Specifications

Model YIII-50 YIII-80 YIII-100 YIII-160
Rated load 500 Kg 800 Kg 1.0 Ton 1.6 Ton
Standard lift (m) 1.5 1.5 1.5 1.5
Min.Headroom (mm) 265 290 310 350
Hand effort to lift full working load (kg) 34 30 37 30
Load chain Diameter (mm) 5.0 5.6 5.6 7.2
No. of falls 1 1 1 1
Grade of chain V V V V
Net weight (kg) 3.6 6.2 6.4 9.2



Model YIII-320 YIII-630 YIII-900
Rated load (ton) 3.15 6.3 9
Standard lift (m) 1.5 1.5 1.5
Headroom (mm) 420 570 705
Hand effort to lift full working load (kg) 37 38 39
Load chain Diameter (mm) 9.0 9.0 9.0
No. of falls 1 2 3
Grade of chain V V V
Net weight (kg) 15.5 26.5 42.0

 *All specifications herein are subject to change without prior notice.
