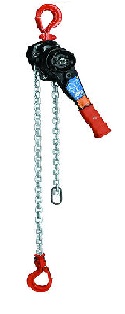

YA Series Lever Hoists
  • YA Series Lever Hoists

YA Series Lever Hoists

Tổng quan

  • Elephant's high-tech load chains are approved by DIN 5684, one of the world's strictest standards. This is the special heat-treated load chain of Grade V (100kgf/mm2) whose tensile strength far surpasses JIS Grade V.
  • Safety factor 5 times.
    Load chain, hooks, braking parts have 5 times safety factor.
  • Stronger hook and safety latch.


YA Series Lever Hoists Specifications

Model YA-80 YA-100 YA-160
Rated load (ton) 0.8 1 1.6
Standard lift (m) 1.5 1.5 1.5
Headroom (mm) 290 312 352
Hand effort to lift full working load (kg) 30 37 30
Load chain Diameter (mm) 5.6 5.6 7.1
No. of falls 1 1 1
Grade of chain V V V
Net weight (kg) 6.0 6.2 9.2



Model YA-320 YA-630 YA-900
Rated load (ton) 3.2 6.3 9
Standard lift (m) 1.5 1.5 1.5
Headroom (mm) 411 564 689
Hand effort to lift full working load (kg) 37 38 39
Load chain Diameter (mm) 9.0 9.0 9.0
No. of falls 1 2 3
Grade of chain V V V
Net weight (kg) 15.5 26.5 42.0

 *All specifications herein are subject to change without prior notice.
