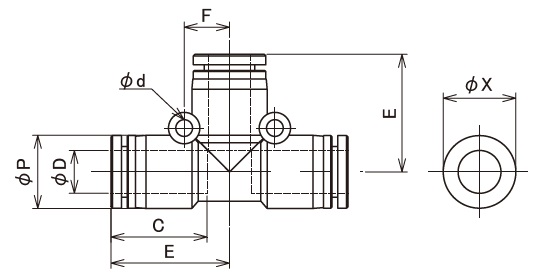

| Part No | Model No | Applicable tube outer diameter φD |
φP | E | C | F | φd | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000651 | OPUT 04 | 4 | 10 | 18.5 | 16 | 6 | 2.2 | 10 | 3 | 7 | 10 | 100 |
| 16000652 | OPUT 06 | 6 | 12.4 | 20.4 | 17 | 8 | 3.2 | 12 | 5 | 9.4 | 10 | 50 |
| 16000653 | OPUT 08 | 8 | 14.4 | 22.8 | 18.5 | 10 | 4.2 | 14 | 7 | 12.6 | 10 | 50 |
| 16000654 | OPUT 10 | 10 | 17.6 | 26.1 | 21 | 12 | 4.2 | 17 | 8 | 21.1 | 5 | 25 |
| 16000655 | OPUT 12 | 12 | 21.2 | 29 | 22.5 | 14 | 4.2 | 21 | 10 | 30.7 | 5 | 20 |
| 16000656 | OPUT 16 | 16 | 25.6 | 31.1 | 24.8 | 16.6 | 5.3 | 24 | 13 | 52.3 | 4 | 12 |
