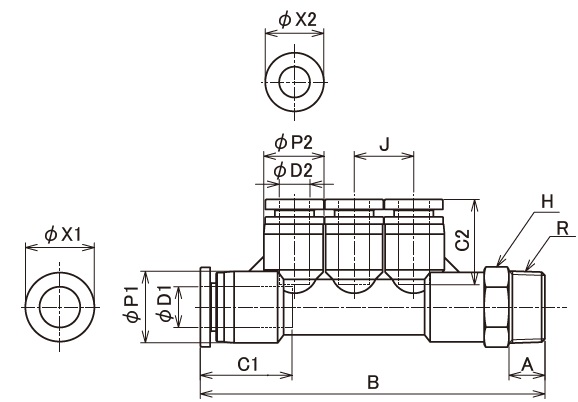

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable tube outer diameter φD2 |
Thread (R) |
B | C1 | C2 | P1 | P2 | J | A | H | φX1 | φX2 |
Oriffice |
Weight(g) | Qty per bag |
Qty per box |
| 16000941 | OPKD 0604-01 | 6 | 4 | 1/8 | 64.7 | 17 | 16 | 12 | 10.4 | 10 | 8 | 12 | 12 | 10 | 3 | 20.4 | 5 | 25 |
| 16000942 | OPKD 0804-02 | 8 | 4 | 1/4 | 70.9 | 18.5 | 16 | 14.4 | 10.4 | 10 | 11 | 14 | 14 | 10 | 3 | 31.2 | 5 | 25 |
| 16000943 | OPKD 0806-02 | 8 | 6 | 1/4 | 76 | 18.5 | 17 | 14.4 | 12.4 | 12 | 11 | 14 | 14 | 12 | 5 | 32.6 | 5 | 25 |
| 16000944 | OPKD 1008-03 | 10 | 8 | 3/8 | 90.6 | 21 | 18.5 | 17.6 | 12.4 | 14 | 12 | 17 | 17 | 14 | 7 | 58 | 5 | 20 |
