Part No | Model No |
Thread |

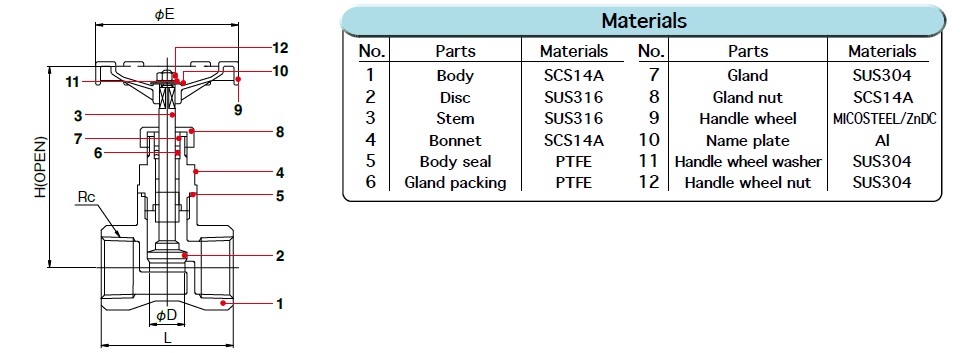

φD | L | H | E |
01101001 | VGB-02 | 1/7 | 12 | 77 | 52 | 70 |
01101002 | VGB-03 | 3/8 | 12 | 77 | 52 | 70 |
01101003 | VGB-04 | 1/2 | 12 | 79 | 52 | 70 |
01101004 | VGB-06 | 3/4 | 15 | 91 | 60 | 70 |
01101005 | VGB-08 | 1" | 20 | 105 | 72 | 80 |
01101006 | VGB-10 | 1"1/4 | 25 | 127 | 81 | 80 |
01101007 | VGB-12 | 1"1/2 | 32 | 142 | 90 | 90 |
01101008 | VGB-16 | 2" | 40 | 158 | 101 | 100 |
