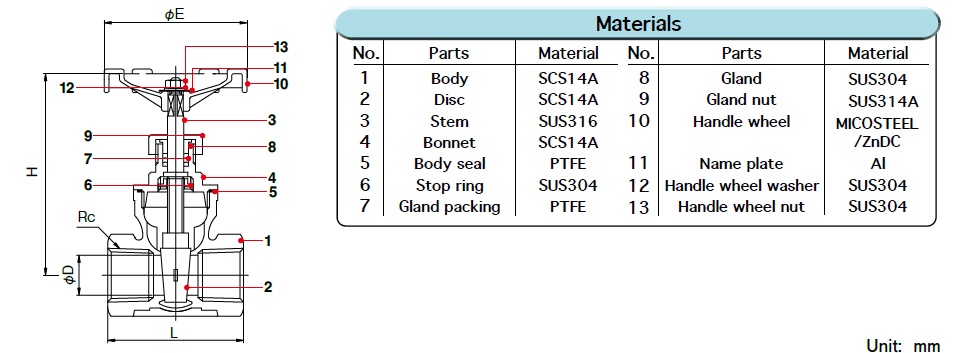

Part No | Model No |
Thread |
φD | L | H | E |
01100901 | VGT-04 | 1/2 | 15 | 92 | 55 | 63 |
01100902 | VGT-06 | 3/4 | 20 | 97 | 60.5 | 70 |
01100903 | VGT-08 | 1" | 25 | 108.5 | 65.5 | 80 |
01100904 | VGT-10 | 1"1/4 | 32 | 123.5 | 76.5 | 80 |
01100905 | VGT-12 | 1"1/2 | 40 | 146 | 85.5 | 90 |
01100906 | VGT-16 | 2" | 50 | 162 | 95.5 | 100 |
