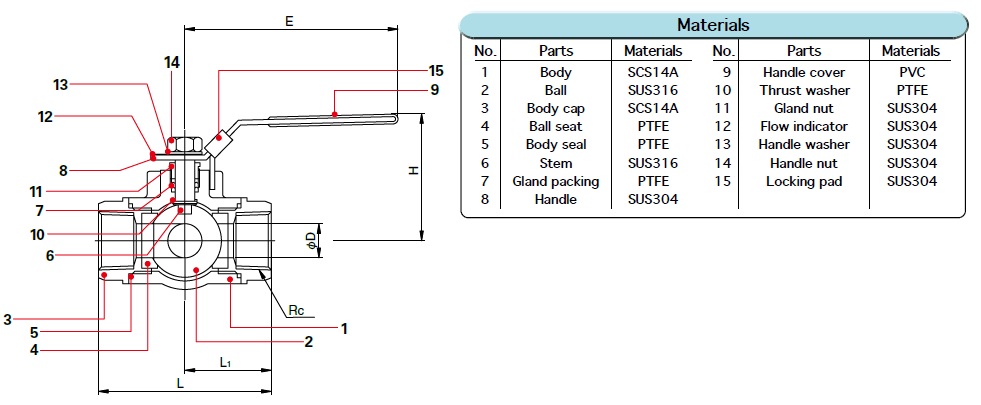

Part No | Model No |
Thread |
φD | L | H | E |
01100801 | V32L-04 | 1/2 | 12.5 | 74 | 53 | 125 |
01100802 | V32L-06 | 3/4 | 15 | 85 | 64 | 125 |
01100803 | V32L-08 | 1" | 20 | 100 | 66 | 145 |
01100804 | V32L-10 | 1"1/4 | 25 | 115 | 79 | 145 |
01100805 | V32L-12 | 1"1/2 | 32 | 125 | 83 | 205 |
01100806 | V32L-16 | 2" | 40 | 150 | 94 | 205 |
