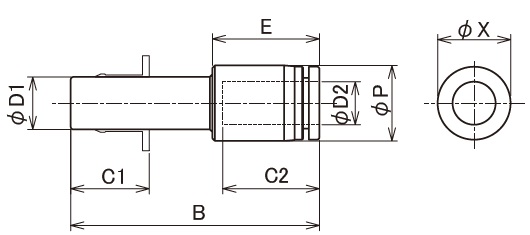

| Part No | Model No | Outside diameter of plug-in φD1 |
Applicable |
φP |
B | C1 | C2 | E | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000781 | OPGJ 0604 | 6 | 4 | 10 | 41.2 | 17 | 16 | 18.2 | 10 | 3 | 3.2 | 10 | 100 |
| 16000782 | OPGJ 0804 | 8 | 4 | 10 | 43.2 | 18.5 | 16 | 18.2 | 10 | 3 | 3.8 | 10 | 100 |
| 16000783 | OPGJ 0806 | 8 | 6 | 12.4 | 44.2 | 18.5 | 17 | 19.2 | 12 | 5 | 4.2 | 10 | 50 |
| 16000784 | OPGJ 1006 | 10 | 6 | 12.4 | 46.2 | 21 | 17 | 19.2 | 12 | 5 | 4.9 | 10 | 50 |
| 16000785 | OPGJ 1008 | 10 | 8 | 14.4 | 47.5 | 21 | 18.5 | 20.5 | 14 | 7 | 6.1 | 10 | 50 |
| 16000786 | OPGJ 1206 | 12 | 6 | 12.4 | 48.2 | 22.5 | 17 | 19.2 | 12 | 5 | 5.9 | 5 | 25 |
| 16000787 | OPGJ 1208 | 12 | 8 | 14.4 | 49.5 | 22.5 | 18.5 | 20.5 | 14 | 7 | 7 | 5 | 25 |
| 16000788 | OPGJ 1210 | 12 | 10 | 17.6 | 52.4 | 22.5 | 21 | 23 | 17 | 8 | 9.9 | 5 | 25 |
