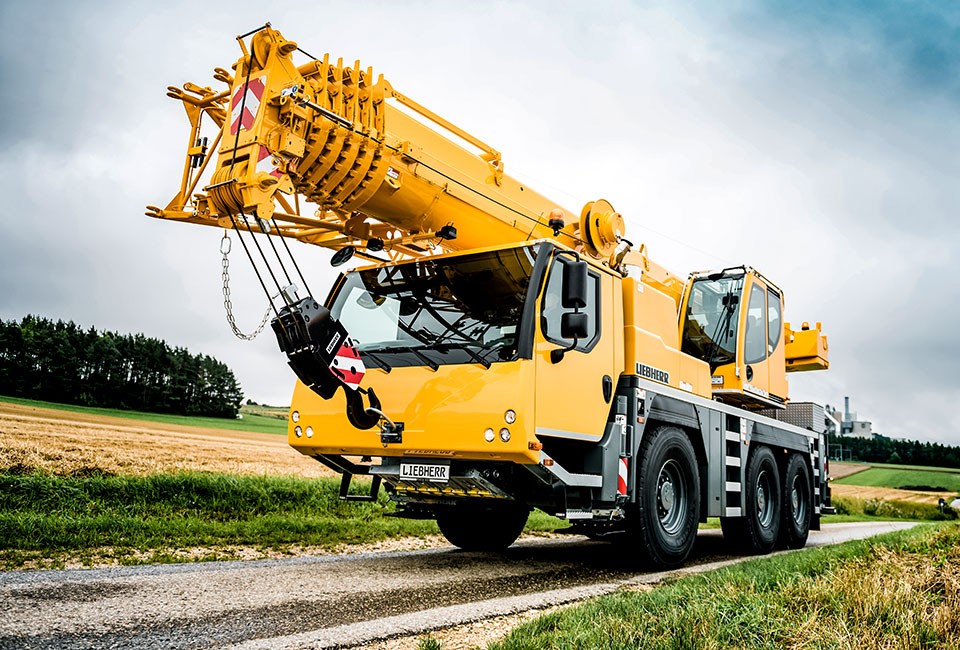

LTM 1060-3.1 - Ideally prepared for any road.
| The LTM 1060-3.1 is designed for driving on roads with lots of ballast. A special method of dividing the ballast slabs has been included in the design of this mobile crane. This means that a wide range of driving configurations can be achieved quickly and easily. Its compact dimensions and time-tested ECOmode and ECOdrive make this mobile crane extremely economical to use. In addition to its compact size, the 3-axle crane features a long telescopic boom and impressive lifting capacities. |
What's inside
-
Reaches into the sky:
Hoist heights of up to 63 m are possible with the folding jib attached.
-
Time-tested technology:
The telescopic boom is extended using the time-tested TELEMATIK single-cylinder telescoping system.
-
Reduced fuel consumption:
ECOmode and ECOdrive cut fuel consumption by up to 10%.
-
Superb design:
Various driving configurations can be achieved by dividing the ballast slabs.
-
Optional VarioBase®:
The prize-winning VarioBase® support system is available as an option to enhance safety.
Technical data
| Max. load capacity | 70 US t |
|---|---|
| at radius | 7 ft |
| Telescopic boom from | 34 ft |
| Telescopic boom up to | 157 ft |
| Lattice jib from | 8 ft |
| Lattice jib up to | 52 ft |
| Drive engine/make | Liebherr |
| Drive engine | 6-Zylinder-Diesel |
| Drive engine/power | 367 hp |
| Number of axles | 3 |
| Drive/Steering standard | 6 x 4 x 6 |
| Drive/Steering option | 6 x 6 x 6 |
| Driving speed | 53.00 mph |
| Total ballast | 28,200 lb |
Downloads
 Technical Data - Mobile crane LTM 1055-3.2 [ft/lb]

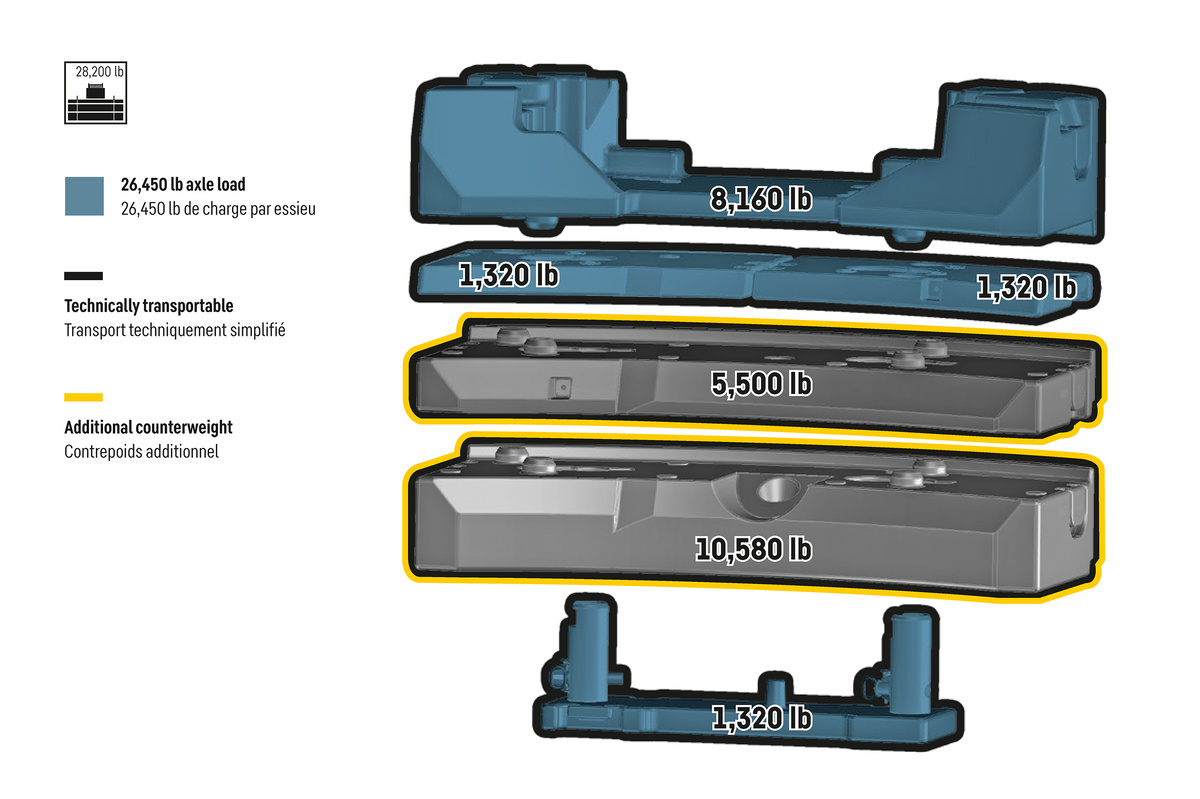

Ballast systems

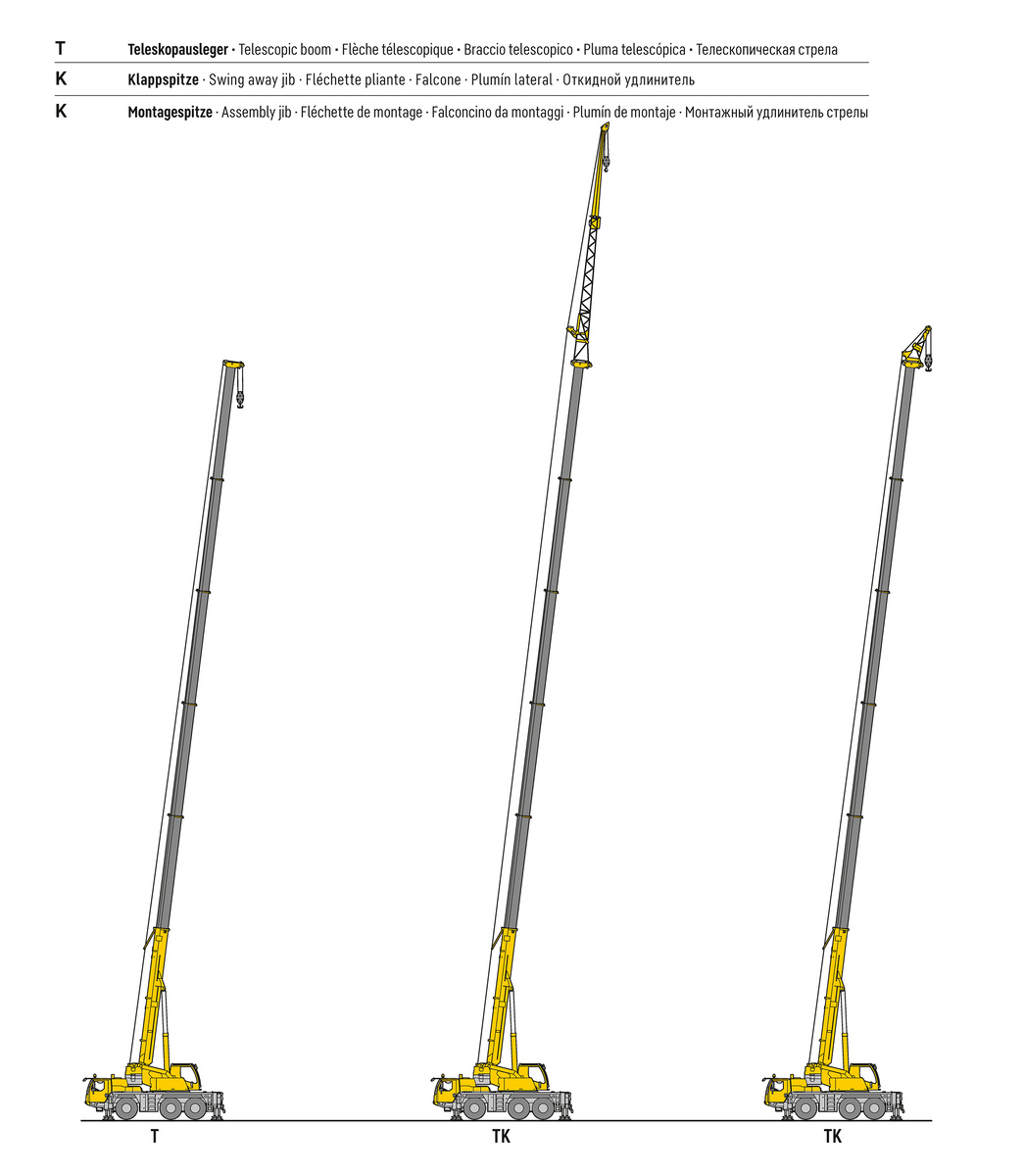

Boom/jib combinations

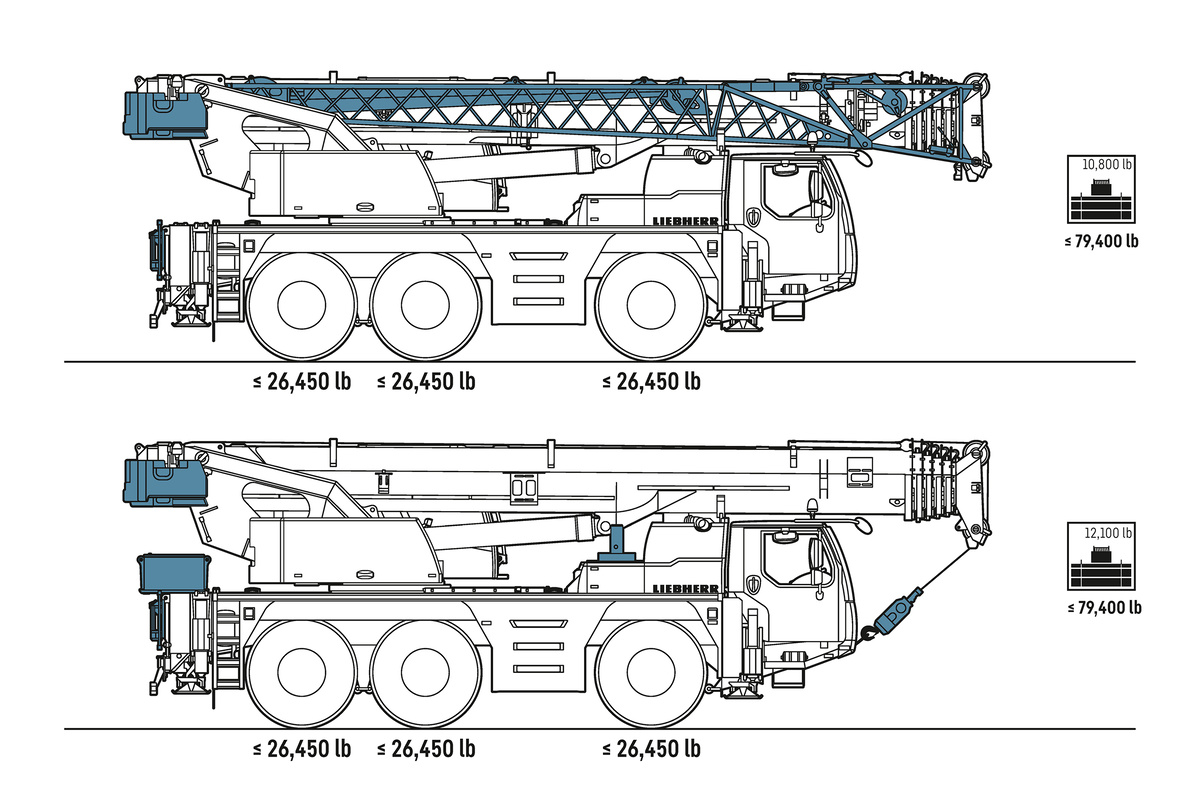

Driving conditions On-road driving
Jobsite driving
|
