LTM 1055-3.2 - The flexibility to make the difference.
| The three-axle LTM 1055-3.2 mobile crane provides high flexibility through its outstanding lifting capacities with full and part ballast. The fully automated support levelling and ballasting systems with advanced keyhole technology ensure that the crane can be made ready for use very quickly. That will make the 3-axle crane popular with many customers for whom flexibility is important. | |
What's inside
-
High into the sky:
Hoist heights of up to 56 m are possible with the folding jib attached.
-
TELEMATIK:
The telescopic boom is extended using the time-tested single-cylinder telescoping system.
-
Reduced consumption:
ECOmode and ECOdrive deliver fuel savings of up to 10%.
-
A great view:
The operator can monitor the set-up processes on the crane using the BTT remote control.
-
Optional VarioBase®:
The VarioBase® support system is available as an option to enhance safety.
Technical data
| Max. load capacity | 65 US t |
|---|---|
| at radius | 9 ft |
| Telescopic boom from | 33 ft |
| Telescopic boom up to | 131 ft |
| Lattice jib from | 8 ft |
| Lattice jib up to | 52 ft |
| Drive engine/make | Liebherr |
| Drive engine | 6-Zylinder-Diesel |
| Drive engine/power | 367 hp |
| Number of axles | 3 |
| Drive/Steering standard | 6 x 4 x 6 |
| Drive/Steering option | 6 x 6 x 6 |
| Driving speed | 53.00 mph |
| Total ballast | 26,400 lb |
Downloads
 Technical Data - Mobile crane LTM 1055-3.2 [ft/lb]

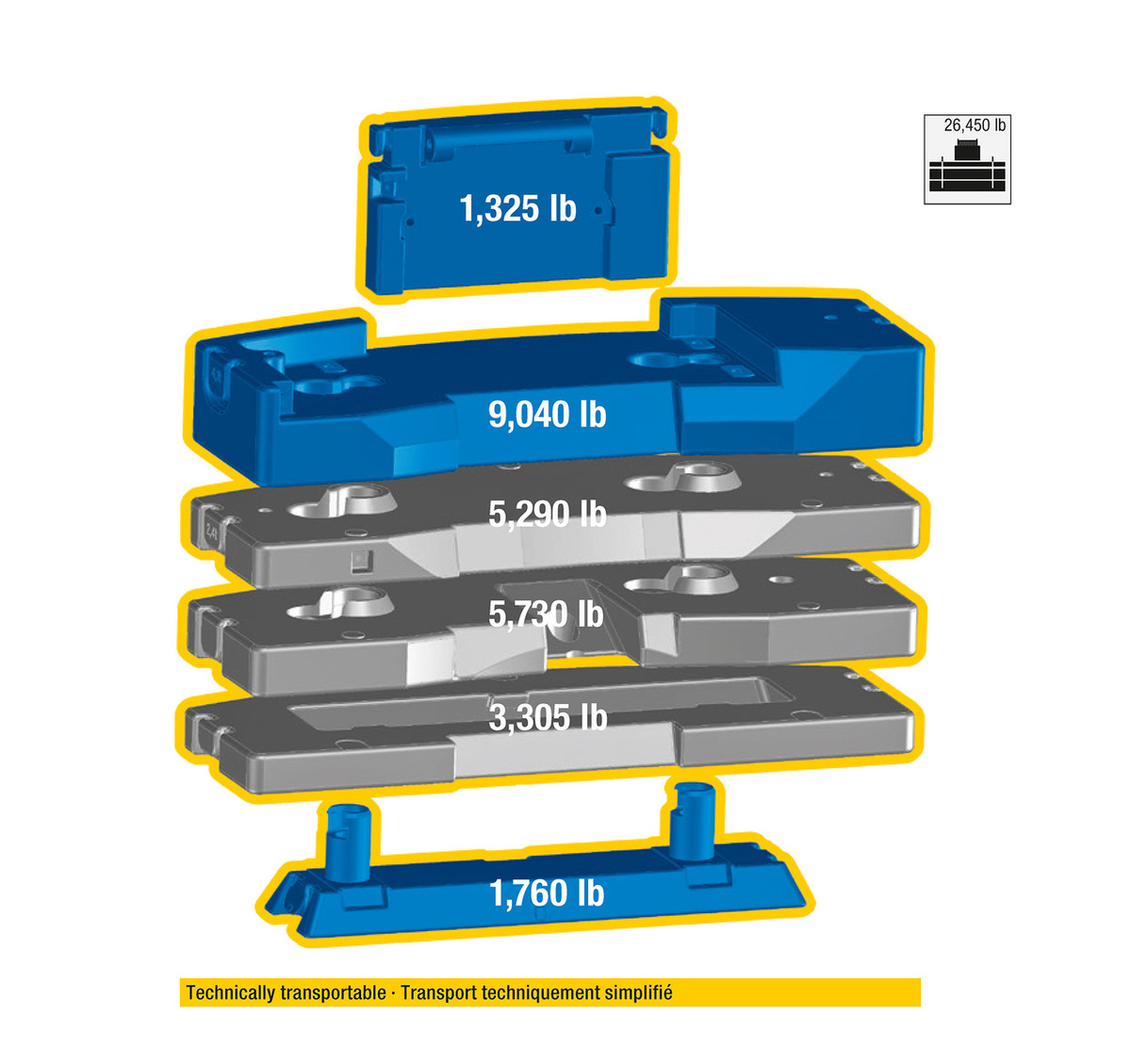

Ballast systems

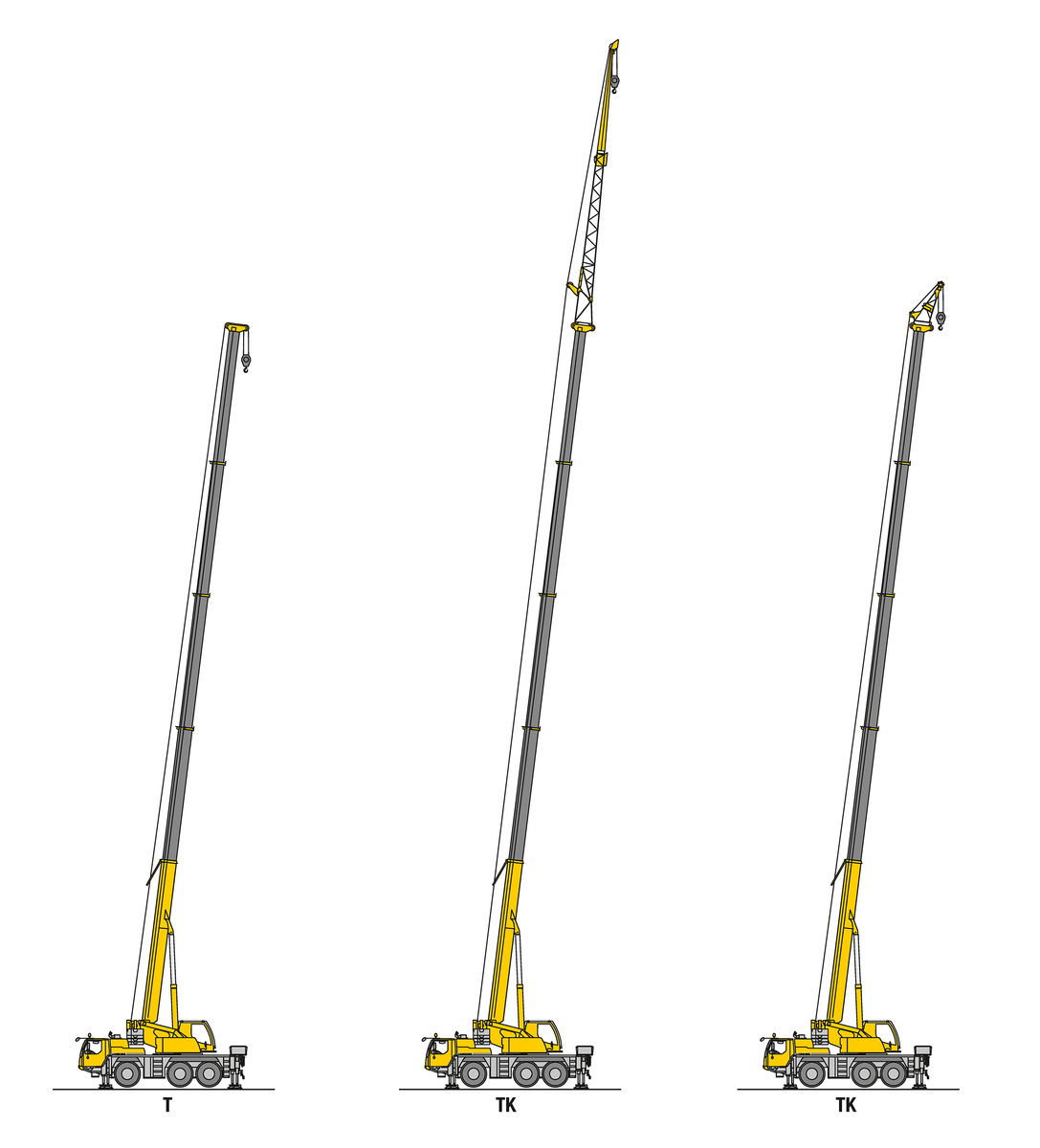

Boom/jib combinations
Driving conditions On-road driving
Jobsite driving
|
