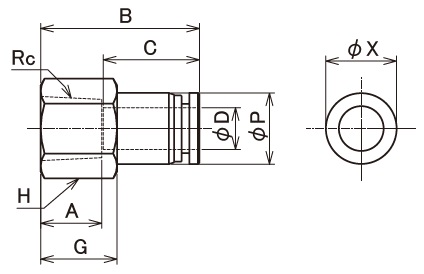

| Part No | Model No | Applicable tube outer diameterφD |
Thread (R) |
A | B | L | φP | C | E | H | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000581 | OPOL 04M5 | 4 | M5x0.8 | 3.5 | 18 | 14.5 | 10.4 | 16 | 5 | 10 | 3 | 6.5 | 10 | 100 | |
| 16000582 | OPOL 0601 | 6 | 1/8 | 8 | 26.9 | 22.5 | 12.4 | 17 | 6 | 12 | 5 | 15 | 10 | 50 | |
| 16000583 | OPOL 0602 | 6 | 1/4 | 11 | 29.5 | 23.5 | 12.4 | 17 | 8 | 12 | 5 | 21.5 | 10 | 50 | |
| 16000584 | OPOL 0801 | 8 | 1/8 | 8 | 26.9 | 22.5 | 14.4 | 18.5 | 6 | 14 | 7 | 22 | 10 | 50 | |
| 16000585 | OPOL 0802 | 8 | 1/4 | 11 | 29.5 | 23.5 | 14.4 | 18.5 | 8 | 14 | 7 | 28 | 10 | 50 | |
| 16000586 | OPOL 0803 | 8 | 3/8 | 12 | 33.8 | 27.3 | 14.4 | 18.5 | 10 | 14 | 7 | 36 | 5 | 50 | |
| 16000587 | OPOL 1002 | 10 | 1/4 | 11 | 29.5 | 23.5 | 17.6 | 21 | 8 | 17 | 8 | 41 | 5 | 50 | |
| 16000588 | OPOL 1003 | 10 | 3/8 | 12 | 33.8 | 27.3 | 17.6 | 21 | 10 | 17 | 8 | 49.5 | 5 | 50 | |
| 16000589 | OPOL 1203 | 12 | 3/8 | 12 | 33.8 | 27.3 | 21 | 22.5 | 10 | 21 | 10 | 68 | 5 | 25 | |
| 16000590 | OPOL 1204 | 12 | 1/2 | 15 | 45 | 26.9 | 21 | 22.5 | 12 | 21 | 10 | 83 | 5 | 20 |
