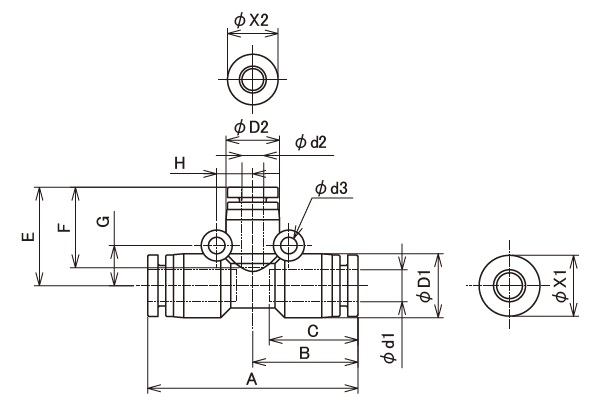

| Part No | Model No | D1 | Applicable tube outer diameter φD1 |
D2 | Applicable tube outer diameterφD2 |
A | B | C | E | d3 | G | H | X1 | X2 | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000681 | OPUG 0604 | 12.4 | 6 | 10.4 | 4 | 40.8 | 20.4 | 17 | 19.1 | 2.2 | 7.8 | 7 | 12 | 10 | 3 | 9 | 10 | 50 |
| 16000682 | OPUG 0804 | 14.4 | 8 | 12.4 | 4 | 45.4 | 22.7 | 18.5 | 21 | 3.2 | 8.6 | 8.2 | 14 | 10 | 4 | 15.2 | 10 | 50 |
| 16000683 | OPUG 0806 | 14.4 | 8 | 12.4 | 6 | 45.4 | 22.7 | 18.5 | 21.7 | 4.2 | 8.6 | 8.2 | 14 | 12 | 5 | 12 | 10 | 50 |
| 16000684 | OPUG 1006 | 17.6 | 10 | 14.4 | 6 | 52.2 | 26.1 | 21 | 23.7 | 4.2 | 10.8 | 9.4 | 17 | 12 | 6 | 23.7 | 5 | 25 |
| 16000685 | OPUG 1008 | 17.6 | 10 | 14.4 | 8 | 52.2 | 26.1 | 21 | 23.4 | 4.2 | 10.8 | 9.4 | 17 | 14 | 7 | 20 | 5 | 25 |
| 16000686 | OPUG 1208 | 21.2 | 12 | 17.4 | 8 | 58.6 | 29.3 | 22.5 | 26 | 4.2 | 13 | 11.5 | 21 | 14 | 8 | 34.4 | 5 | 25 |
| 16000687 | OPUG 1210 | 21.2 | 12 | 17.4 | 10 | 58.6 | 29.3 | 22.5 | 27.1 | 4.2 | 13 | 11.5 | 21 | 17 | 8 | 28 | 5 | 20 |
