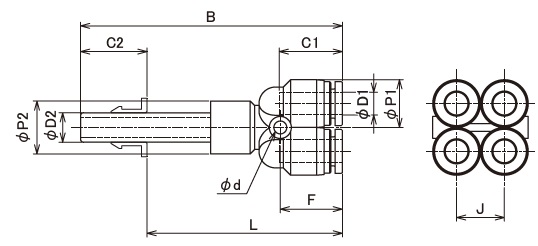

| Part No | Model No | Outside diameter of plug-in φD1 |
Outside diameter of plug-in φD2 |
B | L | φP1 | φP2 | C1 | C2 | φd | J | F |
Oriffice |
Weight(g) | Qty per bag |
Qty per box |
| 16000906 | OPXJ 0604 | 4 | 6 | 55.2 | 43.6 | 10.4 | 13 | 16 | 11.6 | 3.2 | 10.4 | 14.2 | 2 | 12.8 | 5 | 25 |
| 16000907 | OPXJ 0806 | 6 | 8 | 60.9 | 48 | 13 | 14.4 | 17 | 12.9 | 3.5 | 13 | 16.9 | 3.5 | 17.5 | 5 | 25 |
