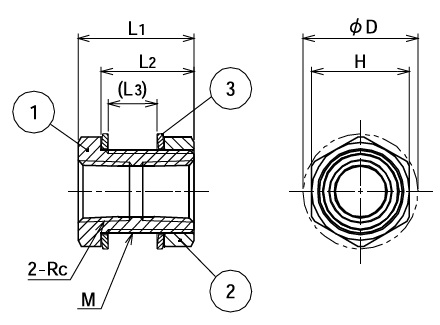

PF×PF
| Part No | Model No |
Thead (Rc) |
Thead (M) | L1 | L2 | L2 | φD | H |
| 07100501 | VPU-01 | 1/8 | 14x1.0 | 25 | 20 | (10) | 20.1 | 17 |
| 07100502 | VPU-02 | 1/4 | 18x1.5 | 25 | 20 | (9.5) | 24.7 | 22 |
| 07100503 | VPU-03 | 3/8 | 22x1.5 | 30 | 25 | (13.5) | 30.5 | 25 |
| 07100504 | VPU-04 | 1/2 | 27x1.5 | 35 | 30 | (18) | 35.2 | 30 |
