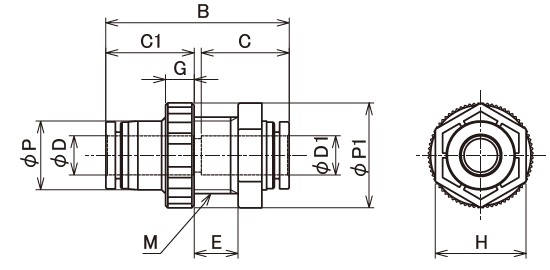

| Part No | Model No | Applicable tube outer diameter φD |
Applicable tube outer diameter φD1 |
Thread (M) | PANEL | C | C2 | B | φP | φP1 | E (Mini) | E (Max) | H | G | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000731 | OPPM 04 | 4 | 4 | M12×1.5 | 12.5 | 15.6 | 16 | 32.2 | 10.4 | 16 | 1 | 7.8 | 14 | 5 | 3 | 7 | 10 | 100 |
| 16000732 | OPPM 06 | 6 | 6 | M14×1.5 | 14.5 | 17.2 | 17 | 36 | 12.4 | 18 | 1 | 9.2 | 17 | 5 | 5 | 9.5 | 10 | 50 |
| 16000733 | OPPM 08 | 8 | 8 | M16×1.5 | 16.5 | 18.4 | 18.5 | 38.4 | 14.4 | 22 | 1 | 9.2 | 19 | 6 | 7 | 13.5 | 10 | 50 |
| 16000734 | OPPM 10 | 10 | 10 | M20×1.5 | 20.5 | 21 | 21 | 43.6 | 17.6 | 28 | 1 | 10.8 | 24 | 6 | 8 | 23 | 5 | 25 |
| 16000735 | OPPM 12 | 12 | 12 | M22×1.5 | 24.5 | 22.5 | 22.5 | 47.6 | 21.2 | 31 | 1 | 16.2 | 27 | 6 | 10 | 31 | 5 | 25 |
