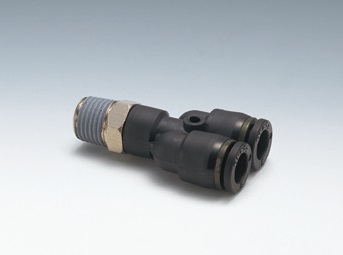

Branch “Y”
  • Branch “Y”

Branch “Y”

Tổng quan

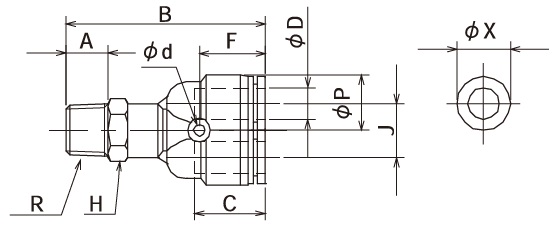

Part No Model No Applicable
tube outer
diameterφD		 Thread
(R)		 φP A B C φｄ J F H φX Orifice
Diameter		 Weight(g) Qty per
bag		 Qty per
box
16000391 OPWT 04M5 4 M5x0.8 10.4 5.5 40.3 16 2.2 9.6 15.2 10 10 2 11.4 10 50
16000392 OPWT 04M6 4 M5x1.0 10.4 6.5 41.3 16 2.2 9.6 15.2 10 10 2 11.4 10 50
16000393 OPWT 0401 4 1/8 10.4 8 43.8 16 2.2 9.6 15.2 10 10 2.6 13.2 10 50
16000394 OPWT 0402 4 1/4 10.4 11 45.8 16 2.2 9.6 15.2 14 10 2.6 20.1 10 50
16000395 OPWT 06M5 6 M5x0.8 12.4 5.5 41.7 17 3.2 12 17 12 12 2 13.8 10 50
16000396 OPWT 06M6 6 M6x1.0 12.4 6.5 43.2 17 3.2 12 17 12 12 3 13.8 10 50
16000397 OPWT 0601 6 1/8 12.4 8 43.7 17 3.2 12 17 12 12 4.6 15.8 10 50
16000398 OPWT 0602 6 1/4 12.4 11 47.7 17 3.2 12 17 14 12 4.6 23.5 10 50
16000399 OPWT 0603 6 3/8 12.4 12 49.7 17 3.2 12 17 17 12 4.6 35.2 10 50
16000340 OPWT 0801 8 1/8 14.4 8 47.8 18.5 3.2 14 17.3 14 14 6 20.3 10 50
16000341 OPWT 0802 8 1/4 14.4 11 51.8 18.5 3.2 14 17.3 14 14 6 27.4 10 50
16000342 OPWT 0803 8 3/8 14.4 12 52.8 18.5 3.2 14 17.3 17 14 6 35 5 25
16000343 OPWT 1001 10 1/8 17.6 8 55.2 21 4.2 18 21.5 17 17 5 37 5 25
16000344 OPWT 1002 10 1/4 17.6 11 58.2 21 4.2 18 21.5 17 17 8 39.6 5 25
16000345 OPWT 1003 10 3/8 17.6 12 59.2 21 4.2 18 21.5 17 17 8 47.9 5 25
16000346 OPWT1004 10 1/2 17.6 15 62.2 21 4.2 18 21.5 21 17 8 62.2 5 25
16000347 OPWT 1202 12 1/4 21.2 11 60.7 22.5 4.2 20.8 21 21 21 9 53.5 5 20
16000348 OPWT1203 12 3/8 21.2 12 61.7 22.5 4.2 20.8 21 21 21 9 57.2 5 20
16000349 OPWT 1204 12 1/2 21.2 15 64.7 22.5 4.2 20.8 21 21 21 9 69 5 20
