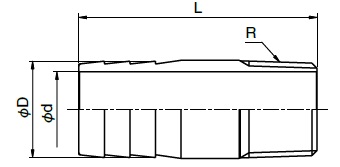

| Part No | Model No |
Thread Rc |
L | φD | φd | Qty per Iner box |
Qty per outer box |
| 04100461 | VRHN-01 | 1/8 | 41 | 10.5 | 7.5 | 100 | 400 |
| 04100462 | VRHN-02 | 1/4 | 41 | 13.5 | 9.8 | 80 | 320 |
| 04100463 | VRHN--03 | 3/8 | 42 | 17 | 13.3 | 50 | 200 |
| 04100464 | VRHN-04 | 1/2 | 52 | 21.5 | 16.7 | 40 | 160 |
| 04100465 | VRHN-06 | 3/4 | 55 | 27 | 22.2 | 50 | 200 |
| 04100466 | VRHN-08 | 1" | 60 | 33.7 | 28 | 25 | 100 |
| 04100467 | VRHN-10 | 1"1/4 | 66 | 42 | 36.7 | 15 | 60 |
| 04100468 | VRHN-12 | 1"1/2 | 70 | 48 | 42.6 | 10 | 40 |
| 04100469 | VRHN-16 | 2" | 80 | 59.5 | 53.5 | - | 35 |
| 04100470 | VRHN-20 | 2"1/2 | 150 | 75.5 | 69.3 | - | 18 |
| 04100471 | VRHN-24 | 3" | 150 | 89 | 81.1 | - | 12 |
| 04100472 | VRHN-32 | 4"150 | 150 | 113 | 106.3 | - | 8 |
