The K8V series are variable displacement axial piston pumps for closed loop system.
With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve the world's top-level pump efficiency and low noise which contribute to energy saving on applications and comfortable working environment.
Delivery flow is controlled precisely in response to control signal by mechanical feedback of swash plate tilting position.
Specifications
| Model | K8V71 | K8V90 | K8V125 | |
| Displacement (cm3) | 71 | 90 | 130 | |
| Pressure (MPa) | Rated | 40 | ||
| Peak | 45 | |||
| Max Self Priming Speed (min-1) | 3300 | 3050 | 2850 | |
| Weight (approx.) (kg) | 57 | 72 | 95 | |

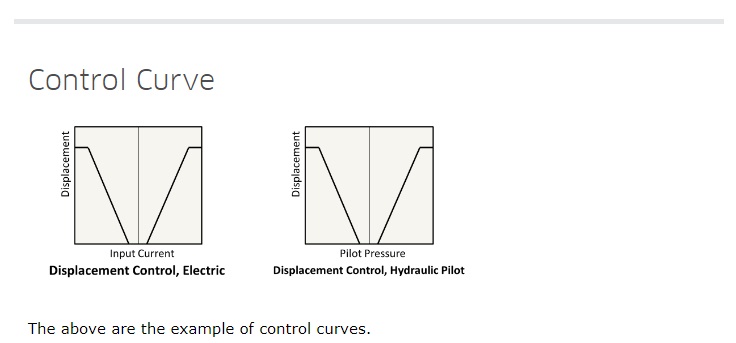

Control Curve
