The K3VL series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile and industrial applications.
The unique mechanism obtained through our long research has drastically reduced pressure pulsation.
Unload and variable pressure controls are made possible remotely in addition to load-sensing and pressure constant. In addition, the horsepower control is available.
Specifications
| Model | K3VL 28 |
K3VL 45 |
K3VL 80 |
K3VL 112 |
K3VL 140 |
K3VL 200 |
K3VL 200H*1 |
|
| Displacement (cm3) | 50 | 65 | 85 | 112 | 140 | 200 | ||
| Pressure (MPa) | Rated | 32 | ||||||
| Peak | 35 | |||||||
| Max Self Priming Speed (min-1) | 3000 | 2700 | 2400 | 2300 | 2200 | 1900 | 2200 | |
| Mass (approx.) (kg) | 20 | 25 | 35 | 65 | 65 | 130 | 130 | |

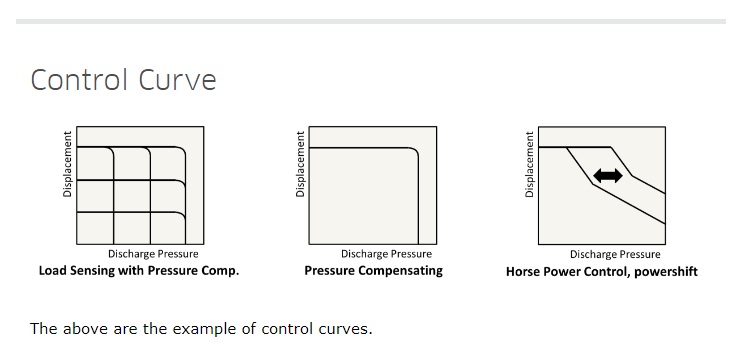

Control Curve
